FOCUS JDC single shaft horizontal mixer has great mechanical, hydraulic and electrical system. The mixing system is spur gear-driven, equipped with motor-driven feeding hopper. It is a new type of compulsory concrete mixer which was researched and developed by our experts, main features are as follows:
1. Fixed tank and chassis, mixing shaft no longer bears the weight of materials and the tank's pressure, thus extending the service life of the mixing shaft;
2. It adopts automatic opening discharge, avoid the shortcomings of raw material retention during rotation tank discharging;
3. Clean and fast discharge;
4. It is easy to maintenance, saving time and labour energy, with attractive shape;
5. High productivity. This series my mix plasticity concrete and subarid rigid concrete, flowable concrete, light aggregate and mortar.
请填写您需要的报价或支持，我们会尽快和您取得联系！
1. Fixed tank and chassis, mixing shaft no longer bears the weight of materials and the tank's pressure, thus extending the service life of the mixing shaft;
2. It adopts automatic opening discharge, avoid the shortcomings of raw material retention during rotation tank discharging;
3. Clean and fast discharge;
4. It is easy to maintenance, saving time and labour energy, with attractive shape;
5. High productivity. This series my mix plasticity concrete and subarid rigid concrete, flowable concrete, light aggregate and mortar.
| Demonstration with photos | ||
 |
 |
 |

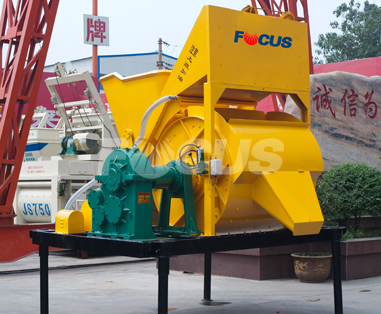

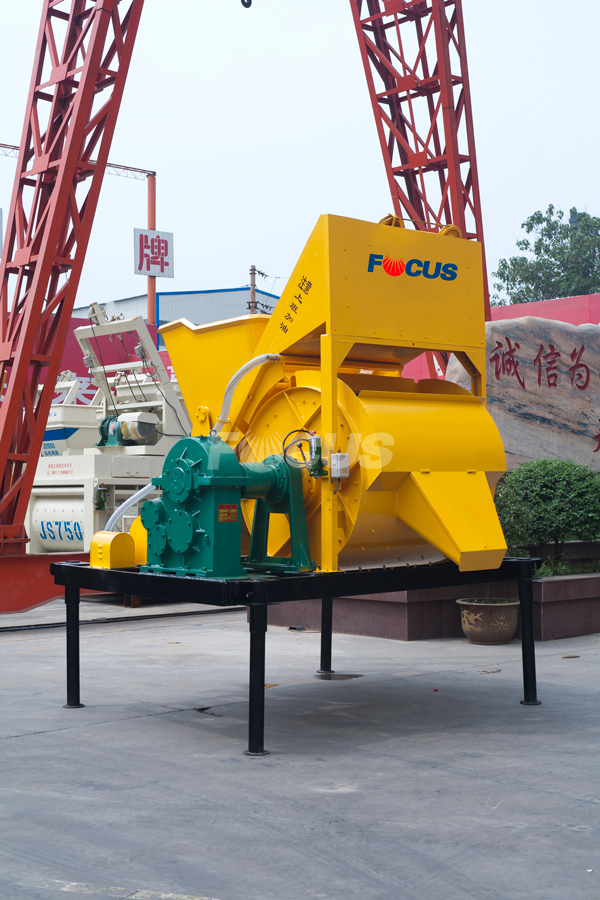

| 单卧轴 | JDC 搅拌鼓 | JDC搅拌机电箱 |
 JDC搅拌机 |
 JDC搅拌机在展示区 |
 JDC mixers waiting for delivery |
FOCUS JZC series concrete mixer is a kind of reversal discharging mobile concrete mixer, which can mix semi-rigid and plastic concrete.
The mixing drum is gear-driven and has characteristics of balance running, simple operation and high mixing quality. It can be composed as a medium-sized mixing station matched with feeding and weighing device, widely used in different kinds of construction projects.
FOCUS JZM series cement mixer can mix plastic and semi-rigid concrete. It adopts rubber roller friction drive, enabling it good features such as low noise, smooth operation, convenient to move around, quality mixing, high efficiency, etc. Working with batching equipment, it can be composed as a small/middle sized mixing station, applicable in general construction sites, roads, bridges and hydropower projects, especially for urban residential construction.
The mixing drum is gear-driven and has characteristics of balance running, simple operation and high mixing quality. It can be composed as a medium-sized mixing station matched with feeding and weighing device, widely used in different kinds of construction projects.
FOCUS JZM series cement mixer can mix plastic and semi-rigid concrete. It adopts rubber roller friction drive, enabling it good features such as low noise, smooth operation, convenient to move around, quality mixing, high efficiency, etc. Working with batching equipment, it can be composed as a small/middle sized mixing station, applicable in general construction sites, roads, bridges and hydropower projects, especially for urban residential construction.
| Demonstration with photos | ||
 |
 |
 |
| JZC搅拌机传动齿轮 | JZM搅拌机摩擦轮 | JZC翻斗搅拌机半成品 |
 |
 |
 |
| JZC爬斗搅拌机半成品 | 柴油机JZC搅拌机 | JZC mixer with tip bucket finished products |
 |
 |
 |
| JZM mixer | JZC搅拌机在展示区 | JZC搅拌机在装运 |
请填写您需要的报价或支持，我们会尽快和您取得联系！
点击放大表格
|
型号
参数
|
单位 | JDC350 | JDC500 | |
|---|---|---|---|---|
| 出料容量 | L | 350 | 500 | |
| 进料容量 | L | 560 | 800 | |
| 最大骨料尺寸 | Mm | 60 | 60 | |
| 搅拌周期 | s | 30 | 30 | |
| 工作循环次数 | 每小时 | 50 | 50 | |
| 理论产量 | m³/h | 17.5 | 20-25 | |
| 搅拌轴转速 | r/min | 27.6 | 27.6 | |
| 料斗提升速度 | m/min | 36 | 34 | |
| 电机 | 搅拌电机型号 | Y160L-4B | Y180M-4 | |
| 功率 | Kw | 15 | 18.5 | |
| 提升电机型号 | YEZ112L-4 | YEZ132S-4 | ||
| 功率 | Kw | 4.5 | 5.5 | |
| 微型水泵型号 | 40GB-100 | BL12-16-1.1 | ||
| 功率 | Kw | 0.55 | 1.1 | |
| 流量 | m³/h | 18 | 18 | |
| 出料电机型号 | Y90L-4 | Y100L-4 | ||
| 功率 | Kw | 1.5 | 2.2 | |
| 供水方式 | Time relay | Time relay | ||
| 重量 | Kg | 3110 | 4180 | |
|
尺寸(LxWxH)
|
Mm | 3370x2510x3130 | 2800x2650x3250 | |
|
型号
参数
|
JZC350 | JZC500 | JZM500 | JZM750 |
|---|---|---|---|---|
| 出料容量 | 350L | 500L | 500L | 750L |
| 进料容量 | 560L | 800L | 800L | 1200L |
| 产量 | 10-14.5m³/h | 18-20 m³/h | 25-30 m³/h | 30-35 m³/h |
| 骨料直径 | 60mm | 60mm | 70mm | 80mm |
| 转速 | 14r/min | 13r/min | 13r/min | 12r/min |
| 拖行速度 | 20km/h | 20km/h | ||
| 搅拌电机 | 5.5kw | 7.5kw | 7.5kw | 11kw |
| 提升电机 | 4.5kw | 5.5kw | 5.5kw | 7.5kw |
| 水泵电机 | 0.55kw | 0.75kw | 0.75kw | 0.75kw |
| 重量 | 1950kg | 3100kg | 3000kg | 4000kg |
|
尺寸
LxWxHmm
|
2766x2140x 3000 |
5230x2300x 5450 |
5200x2065x 3200 |
5650x2065x 3535 |
