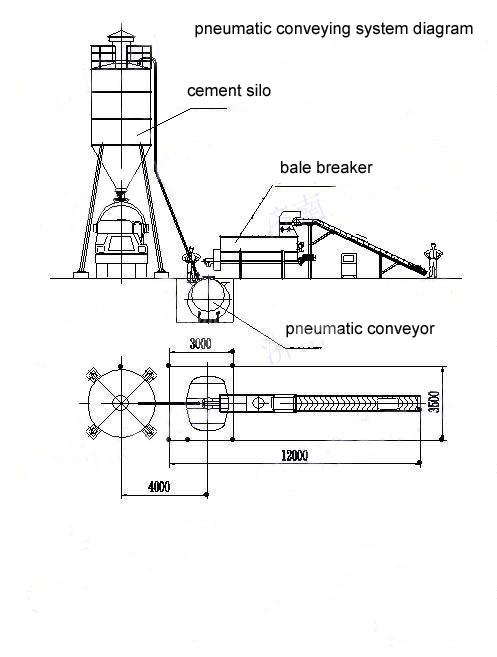

FOCUS cement pneumatic conveyor(cement horizontal feeder or cement charger) is an uniquely structured pneumatic conveying equipment, which uses fluidized pressure delivery technology. It is widely applicable in remote construction sites where bulk cement carrier(truck) is not reachable, whereas bulk cement or bag cement are muchly available.
Cement charger is applicable to transport cement, grain, fly ash and other non-sticky or granular materials. Main characteristics: Large volume of feeder tank, easy to install and operate, compact design, convenient to transfer.
Please fill below form if need quotation or support, we will get back to you as soon as possible.
Cement charger is applicable to transport cement, grain, fly ash and other non-sticky or granular materials. Main characteristics: Large volume of feeder tank, easy to install and operate, compact design, convenient to transfer.
 Feeder tank |
 discharge chute |
 Electrical cabinet |
 Control console |
 Bale breaker |
 Bale breaking assembly |
 Bag cement conveyor |
 Pneumatic assembly |
 Support legs |
 Cement feeder dispatching |

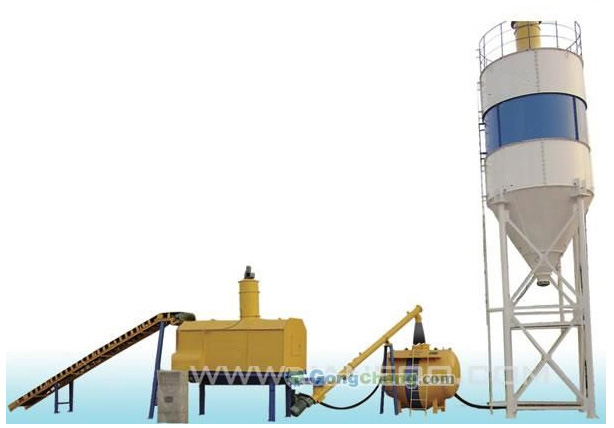

 Cement feeder at site |

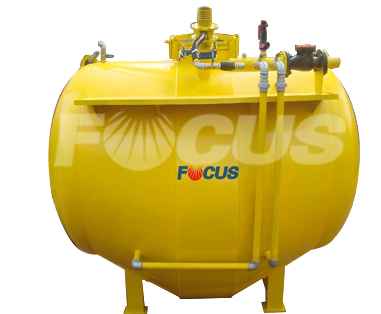

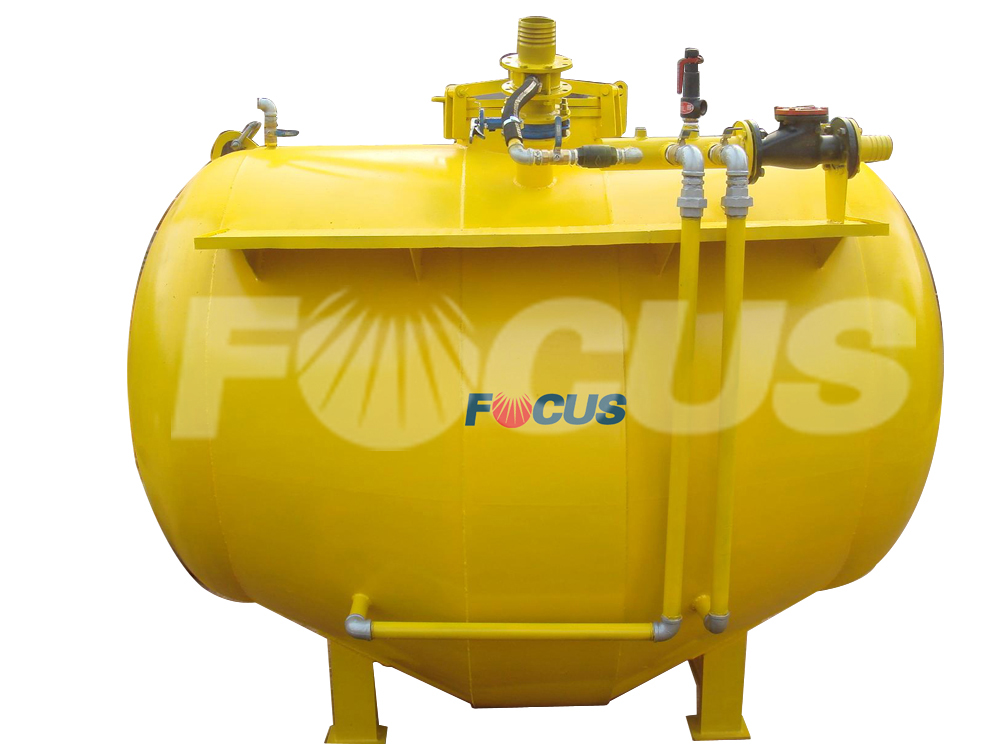

 Cement feeder tank |
Click to enlarge the form

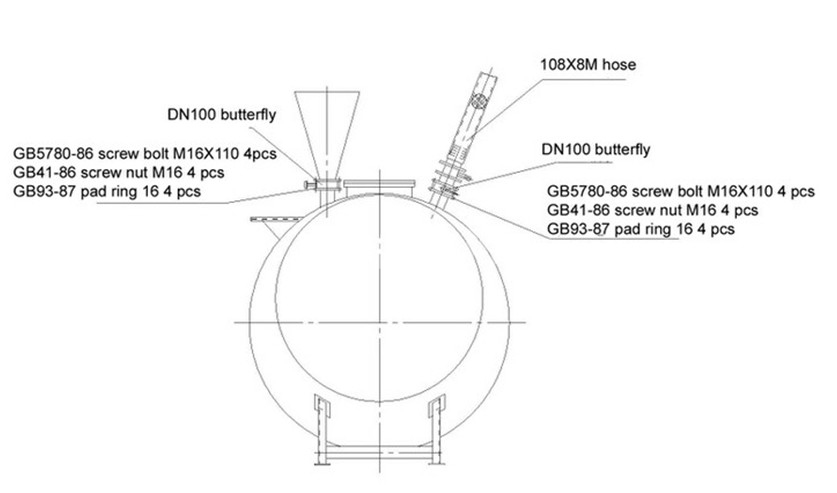

- The main machine is composed a tank, feed port, discharge port, gas path system and so on. The main technical parameters is followed:
| Tank form | Double cone horizontal |
|---|---|
| Theoretical capacity（m3） | 5 |
| Theoretical blowing efficiency（t/min） | 1.2 |
| Residual volume（%） | 0.4 |
| Weight(kg) | 1600 |
| Overall dimensions(mm) |
L×W×H 2600×2000×2530 |
- The gas source is composed of an air compressor, an electric motor and a frame. The main technical parameters is followed:
| Name | Air compressor |
|---|---|
| Motor type | Y180L |
| Rated voltage | 380V |
| Weight | 500kg |
| Air compressor type | BDW-7/2 |
| Power | 18.5kW |
| Connection | â–³ |
| Transmission form | V-belt C-1600×5 |
| Overall dimensions mm(LXWXH) | 1300x714x800 |
