Bale Breaker
- about this model
- technical data
- brochure download
FOCUS cement bag breaker(bale breaker) assembles functions of conveying cement bags, breaking bags, separating cement and bags, transferring bags and cement into different positions.
Cement bale breaker consists of feeding belt conveyor, broken package, bag delivering device, screw conveyor, dust removal device, electrical control system, etc. It is efficient, environmentally friendly, simple operating, convenient maintaining, could be used together with cement charger(cement pumping machine).
Please fill below form if need quotation or support, we will get back to you as soon as possible.
Cement bale breaker consists of feeding belt conveyor, broken package, bag delivering device, screw conveyor, dust removal device, electrical control system, etc. It is efficient, environmentally friendly, simple operating, convenient maintaining, could be used together with cement charger(cement pumping machine).
Working at site |
Our bale breaker in use |
Before painting |
Control console |
Electrical cabinet |
Loading in container |

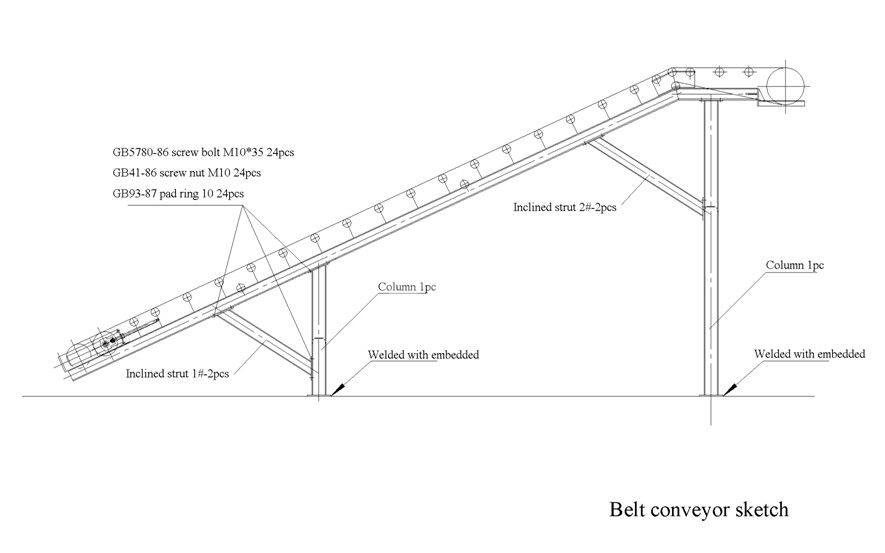

Bag cement conveyor |
Finished product |
Equipment delivering |
Bale breaking device |
Pneumatic assembly |
Support legs |
Click to enlarge the form
Total power 17 kw
Academic productivity 15-25t/h
Weight 4000kg
Overall dimensions (L×W×H) 12300×1400×3310mm
Wearing parts
Academic productivity 15-25t/h
Weight 4000kg
Overall dimensions (L×W×H) 12300×1400×3310mm
Wearing parts
No. | Name | Specifications | Q’ty |
---|---|---|---|
1 | Leakage protection switch | DZ47LE-32/1P +N 20A | 1 |
2 | AC contactor | CJX2-5011/M AC220V | 2 |
3 | AC contactor | CJX2-2510/M AC220V | 2 |
4 | AC contactor | CJX2-0910/M AC220V | 2 |
5 | Intermediate relay | HH54P+TP58X1 AC220V | 2 |
6 | Thermal relay | NR2 12-18A | 1 |
7 | Thermal relay | NR2 7-10A | 1 |
8 | Thermal relay | NR2 4-6A | 1 |
9 | Start button | XB2-BW3361/AC220V green | 2 |
10 | Stop button | XB2-BA42C red | 2 |
11 | Changeover switch | XB2-BD21C | |
12 | Ring belt | 650*4-3/1.5-14000 | 1 |
13 | Bearing | 90506 | 2 |
14 | Bearing seat | UCT506 | 2 |
15 | Bearing | UCFL308 | 1 |
16 | Bearing | UCF205 | 2 |
17 | Blade | 10 | |
18 | blade shaft | 1 | |
19 | Idler roller |
|
24 |
