Concrete Batcher
86-371-86003912
- about this model
- technical data
- brochure download
FOCUS PLD series concrete batching machine（concrete batcher）is a kind of automatically batching equipment which can automatically finish the batching procedures of 3-6 kinds (Second grade concrete) such as sand, stone, cement according to users design. This machine is used together with concrete mixer.
This serial products adopt electronic weighing, computer control, digital display, wired remote control operation, and have characteristic of accurate weighing, high precision batching, quick speed, strong control function and convenient operation. After this serial concrete batching machine combines with relative concrete mixer, different types and specification combined concrete mixing station can be formed.
FOCUS CONCRETE BATCHERS DISPLAY
Please fill below form if need quotation or support, we will get back to you as soon as possible.
This serial products adopt electronic weighing, computer control, digital display, wired remote control operation, and have characteristic of accurate weighing, high precision batching, quick speed, strong control function and convenient operation. After this serial concrete batching machine combines with relative concrete mixer, different types and specification combined concrete mixing station can be formed.
FOCUS CONCRETE BATCHERS DISPLAY
 |
 |

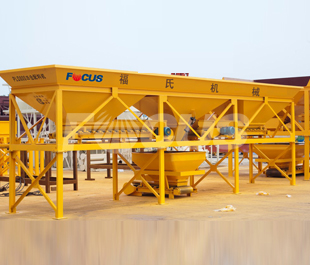

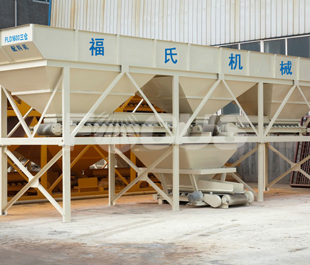

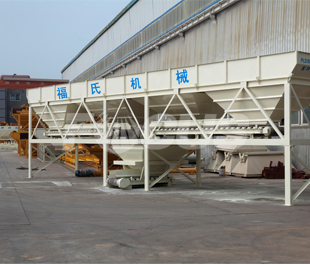

| Four bins accumulative weighing | Three bins accumulative weighing |
 |
 |

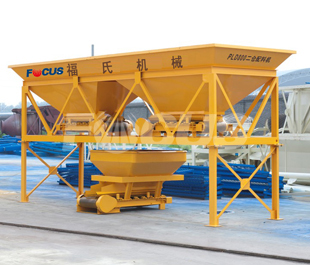

| Three bins with a collecting hopper | Two bins with a collecting hopper |
 |
 |

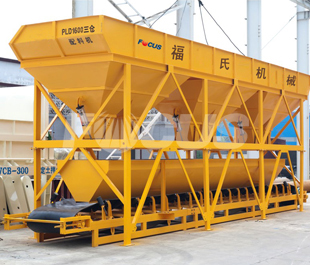

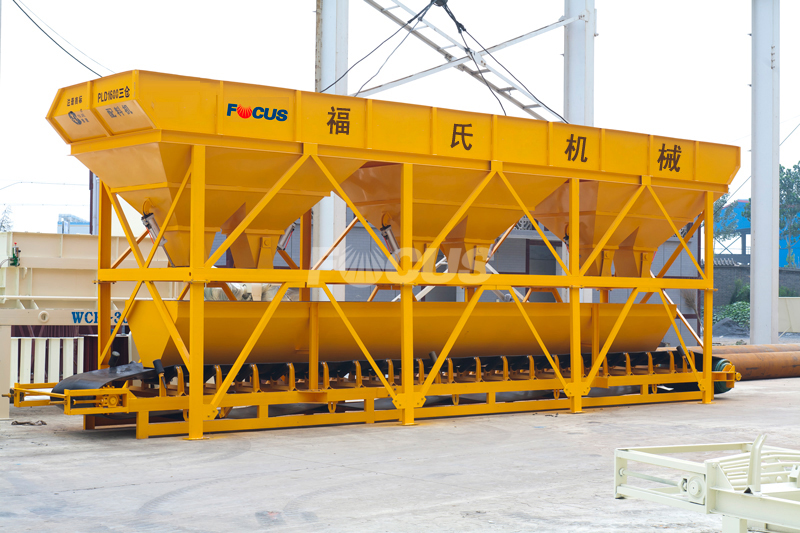

| Four bins with a collecting hopper | Three bins with a weighing belt |
Click to enlarge the form
|
Model
|
Weighing hopper volume(m3)
|
Storage hopper volume(m3)
|
Production capacity
(m3/h) |
Batching accuracy(%)
|
Max.
weighing(kg) |
Batching aggregate category
|
Loading height(mm)
|
Belt conveyor speed(m/s)
|
Dimensions(mm)
|
|---|---|---|---|---|---|---|---|---|---|
|
PLD800
|
0.8
|
2×2
|
48
|
±2
|
1500
|
2
|
3000
|
1.25
|
6400×1600×3000
|
|
PLD1200-â…
|
1.2
|
2×2.2
|
60
|
±2
|
2000
|
2
|
3000
|
1.25
|
6400×2000×3200
|
|
PLD1200-â…¡
|
1.2
|
3×2.2
|
60
|
±2
|
2000
|
3
|
3000
|
1.25
|
9600×1600×3200
|
|
PLD1200-â…¢
|
1.2
|
4×2.2
|
60
|
±2
|
2000
|
4
|
3000
|
1.25
|
12916×2000×3200
|
|
PLD1600-â…
|
1.6
|
3×3.7
|
80
|
±2
|
3000
|
3
|
3000
|
1.25
|
9600×2000×3200
|
|
PLD1600-â…¡
|
1.6
|
4×3.7
|
80
|
±2
|
3000
|
4
|
3000
|
1.25
|
12916×2000×3200
|
|
PLD2400
|
2.4
|
3×12
|
120
|
±2
|
4000
|
3
|
3200
|
1.0
|
9800×2840×3900
|
|
PLD3200
|
3.2
|
3×20
|
160
|
±2
|
5000
|
3
|
3500
|
1.0
|
10140×2900×4450
|
|
PLD3200-â…£
|
3.2
|
4×20
|
160
|
±2
|
5000
|
4
|
3500
|
1.0
|
13500×2900×4450
|
|
PLD4800
|
4.8
|
4×25
|
280
|
±2
|
8000
|
4
|
3800
|
1.0
|
15520×3900×5090
|
