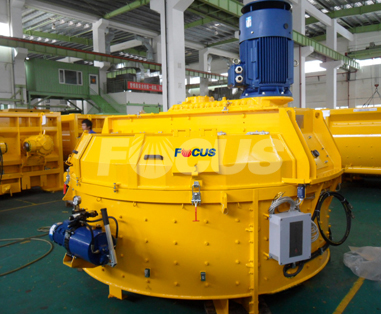

Planetary Vertical Shaft Mixer

  • about this model
  • technical data
  • brochure download
FOCUS MP series of planetary mixers with vertical shafts allow the rapid mixing of all types quality concrete(dry, semi-dry and plastic). The great versatility of the FOCUS MP mixer enables it to be used not only in the production of concrete, but also in the mixing of materials for the production of glass, ceramics, refractory materials, etc. Main features are as follows:
  1. special designed mixing facility make the mixing faster and more homogeneous, and the Ni-hard cast blades are more wearable.
  2. Equipped with a mechanical coupling and a hydraulic coupling(option), which protect the transmission devices from overloads and impacts.
  3. The reduction unit, specifically designed for a balanced distribution of power to the various mixing devices, ensures a low-noise rotation without backlash even under severe working conditions.
  4. Access facility for maintenance and cleaning.
  5. High pressure washout system and moisture sensor SONO-Mix based on TDR are options.
  6. From optimal model selection to customerized mixer for special application situation, FOCUS can offer a full range of technical support and maintenance services.
Demonstration with photos
Mixing arms and blades High pressure washout system MP mixer delivering
Hydraulic system with manual pump Access facility for maintenance and cleaning Discharging door equipped with limit switches
Specifically designed reduction gearbox Large capacity pneumatic cylinder Last examination before deliver-out
Please fill below form if need quotation or support, we will get back to you as soon as possible.

Click to enlarge the form
Model
parameter
MP
500
MP
750
MP
1000
MP
1500
MP
2000
MP
2500
MP
3000
Discharge vol.(L) 500 750 1000 1500 2000 2500 3000
Feeding capacity(kg) 1200 1800 2400 3600 4800 6000 7200
Charging vo.(L) 750 1125 1500 2250 3000 3750 4500
Mixing power(kw) 18.5 30 37 55 75 90 110
Diameter of mixing drum(mm) 1900 2200 2500 2800 3100 3400 3400
Mixing arms&blades 1x2 1x3 2x2 2x2 3x2 3x3 3x3
Side scraper&discharge scraper 1/1 1/2
Discharging power(kw) 2.2 2.2 3 3 4 4 4
Weight(kg) 2000 3500 5500 6500 8500 10500 11000
