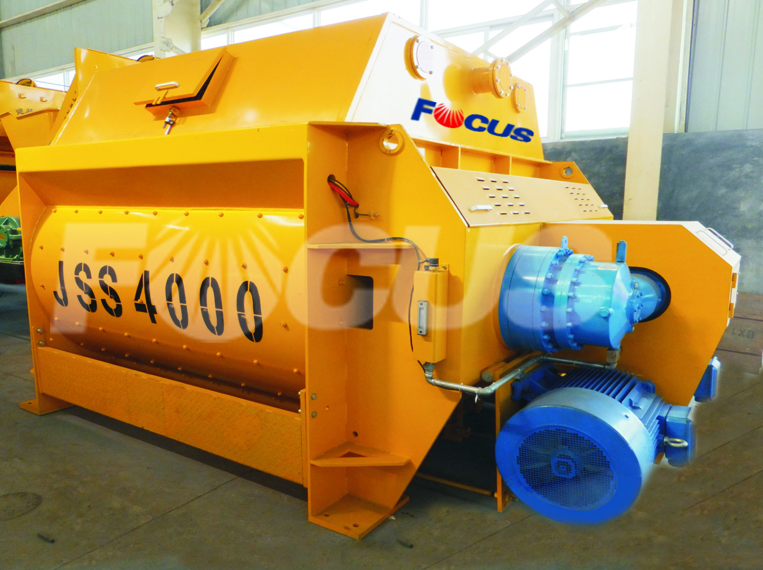

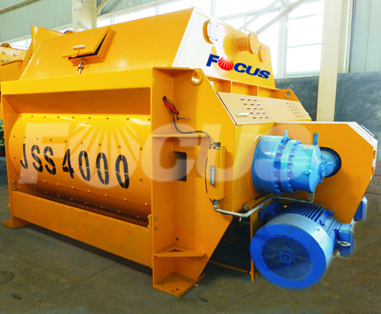

Twin-shaft Compulsory Mixer

  • about this model
  • technical data
  • brochure download
FOCUS JS series of twin-shaft compulsory concrete mixer has the strong mixing ability with uniform mixing and high production output. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts. Shaft seals use multi-sealed structures to effectively prevent the slurry leakage. Lubricating system supplies oil to the four shaft-end respectively with four pump cores, without diverter valve in order to avoid unnecessary blocking, saving much less maintenance work.

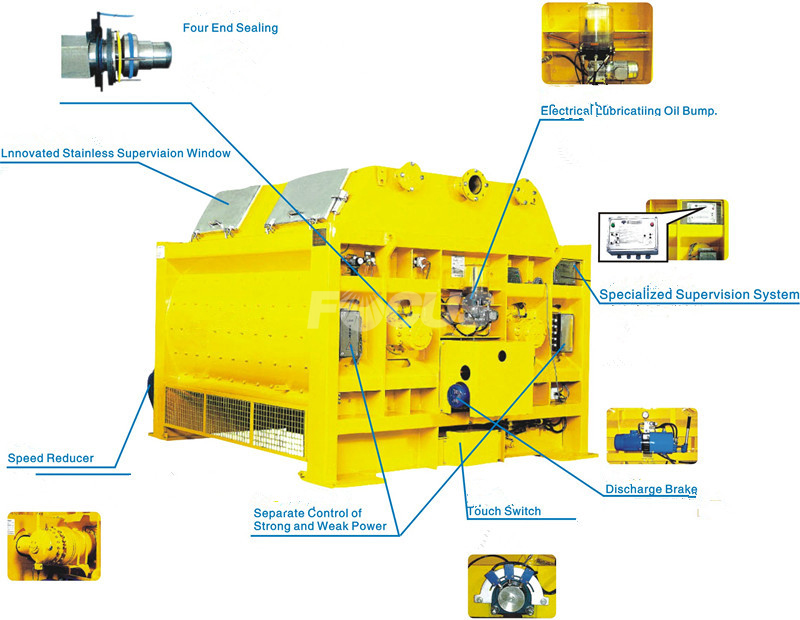

Four Layer Shaft End sealing, Innovated Stainless Observation Window, Separated Control of Strong and Weak Power, Touch Switch, Discharge Brake, Unique Monitor System, Electric Lubricating System

Demonstration with photos
New double-spiral-belt mixing blades Traditional mixing blades Original Italian synchronizer
Multi-sealed shaft end Smooth and efficient planetary gear box Highly accurate auto greasing system
Lubricating position at fixed point Advanced water spraying system Large material discharge chute
Please fill below form if need quotation or support, we will get back to you as soon as possible.

Click to enlarge the form
Model
parameter
JS500 JS750 JS1000 JS1500 JS2000 JS3000 JS4000
Discharge vol.(L) 500 750 1000 1500 2000 3000 4000
Charging vo.(L) 800 1200 1600 2400 3200 4800 6400
Output capacity(m³) 25 35 50-60 75-90 120 180 240
Aggregate size(mm) 80
Working circle(s) 60
Discharge height(m) 1.5-4.1 adjustable
Mixing blade Speed 31r/min 19.5r/min 21r/min
Quantity 2x7 2x8 2x10
Mixing motor Model Y180M-4 Y1200L-4 Y225S-4 Y225M-4 Y25M-4 Y280M-6 Y315S-6
Power 18.5kw 30kw 37kw 2x22kw 2x37kw 2x55kw 2x75kw
Lifting motor Model YEZ132S-4 YEZ132M-4 YEZ160L-4 YEZ180M-4
Power 5.5kw 7.5kw 11kw 18.5kw
Pump motor Model 50DWB208A 65DWB355 KQW65-100 KQW65-100
Power 0.75kw 1.1kw 3kw 3kw
Weight(kg) 4000 5500 8700 9880 10960 11130 13500
Dimension(LxWxH)
mm
3030x2300x2680 4550x
2250x
2450
4640x
2250x
2250
5058x
2250x
2440
3810x
2480x
1710
4220x
2620x
1910
4450x
3050x
2380
