HZS90 Batch Plant

  • about this model
  • technical data
  • brochure download

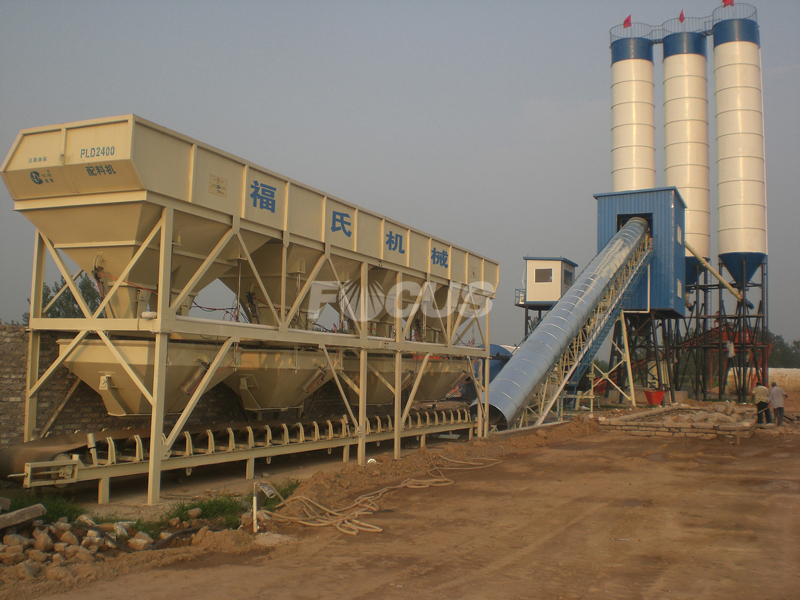

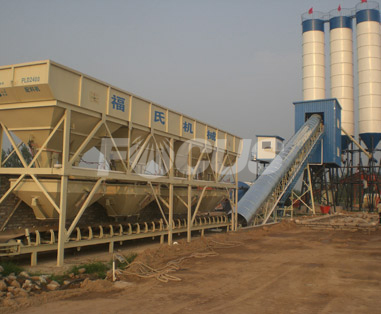

This ready-mixed concrete plant adopts JS1500 twin-shaft concrete mixer or Original SICOMA mixer, multi sealed shaft end technology. Modular design structure makes fast and convenient assembling and debugging, safe, comfortable and reliable operation with homogeneous and efficient mixing effect. It is the ideal concrete mixing plant for construction projects, power station, roads, harbor, bridge, airport, large precast products plant and commercial concrete factories.

Main features of this ready-mixed concrete plant :
  1. Good quality material, rational design:
Steel structure is made by standard steel production of large section, fast disassembly and convenient transportation; The concrete mix plant layout is flexible, covers an maximum optimization area.
  1. High quality and reliable mixer:
Double horizontal shaft design, SICOMA technology, mixing rapidly and high productivity;
  1. Precise measurement system:
Measurement of all materials (aggregate, cement, fly ash, water and liquid additive) are scaled in electronic measurement independently;
  1. Suitable for different environment.
 Heating system and ice plant could be adopted into this plant in severely cold and hot places.
  1. Perfect control:
Simple operation, perfect control system, fully automatic backed up by manual mode;
  1. Wear-resisting design:
Wear resistant design for finished concrete product hopper, aggregate collection hopper, belt machine head cover, main part is provided with a replaceable lining plate;
  1. Superior environmental performance:
This concrete batch plant adopts closed structure, with dust removal system in the mixer tower. All belt conveyor are equipped with polyurethane sweeper, big ones are also provided with a water spray cleaning device to avoid material sticking.





  Please fill below form if need quotation or support, we will get back to you as soon as possible.

Click to enlarge the form
Main technical data
Type HZS90
Productivity in theory 90m³/h
Mixer JS1500
Total power 145KW
Maximum aggregate diameter 80mm
Aggregate feeding method Conveyor belt
Aggregate bins volume 4x12m³
Aggregate weighing 4000kg ±2%
Cement weighing 1000kg ±1%
Fly-ash weighing 400kg ±1%
Water weighing 400kg ±1%
Additive weighing 40kg ±1%
Discharging height 3.8m-4.1m

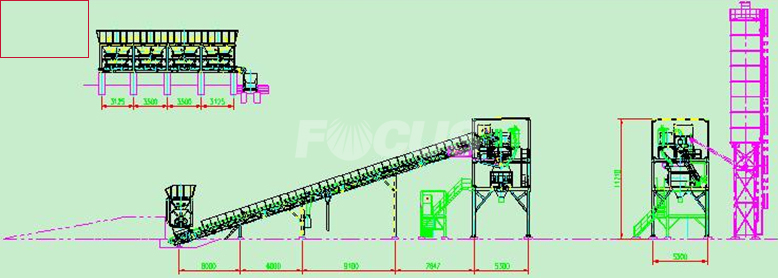

Overall dimension(during operating)
        (LXWXH)
38mX16mX12.7m
Total weight 60T
Control Fully automatic central plus manual control
Cement silo(optional) On request
Cement screw(optional) On request

Be noted:
1. Please ask detailed configuration from our sales reps.
2. The power figure doesn't include the power of cement silo and screw;
3. Non-standard design could be made according to clients' demand;
4. The above-mentioned data could be changed due to the technical&design upgrade, please check
  the updated parameter when purchasing.
